FUME EXTRACTION ARMS

Designed for industrial applications, RoboVent Fume Extraction Arms are self-supporting, with smooth, low-friction surfaces, and require minimal maintenance. These heavy-duty extraction arms are designed to move easily into position to remove smoke and contaminated air from a worker’s breathing zone. They are durable, robust and virtually maintenance-free. All joints are on the outside of the arm, not in the dirty airstream. All metal surfaces are powder-coated to protect against scratches.

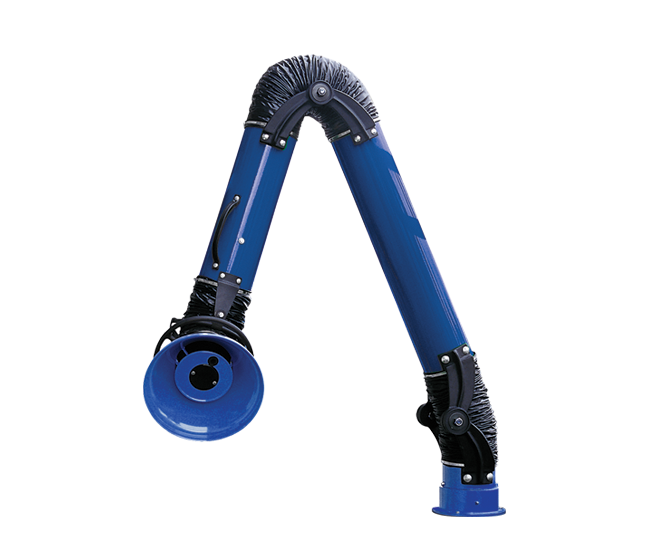

Base-Mount Fume Arm
Hanging Fume Arms

Base-Mount Fume Arms

Mounted to the work surface. Available in 6"(15 cm) and 8"(20 cm) diameters.

Hanging Fume Arms

For wall mounting. Available in 6"(15.24cm) and 8"(20.32cm) diameters.

EXTENSION BOOMS FOR EXTRACTION ARMS

RoboVent extension booms are designed to extend the reach of the RoboVent Fume Extraction Arms, providing up to a 28-foot (8.53m) radius of combined coverage. The extension booms are heavy-duty, welded construction with a durable powder-coat finish. All booms include a bracket for securing the boom to a wall or post and a heavy-duty flange to attach the fume arm. Booms come in both single- and double-articulated versions with a reach of 7 feet (2.13m) to 14 feet (4.27m) as standard. Ask your solution specialist if other options are required for your application.

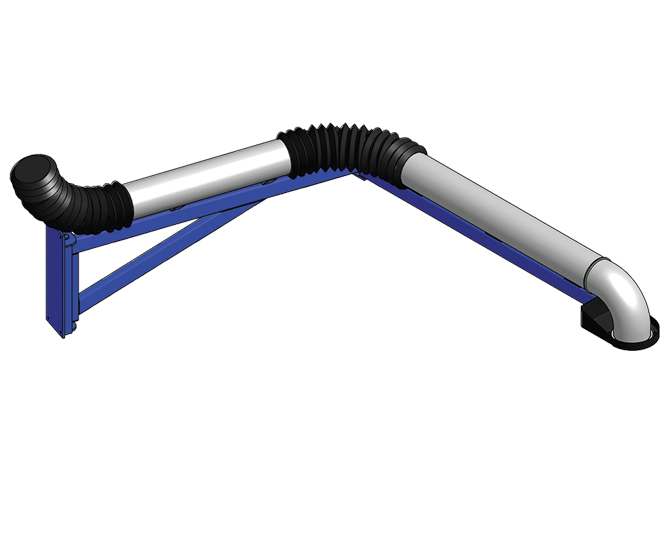

Single-Articulated Extension Booms

Single-Articulated Extension Booms

Basic extension boom extends reach up to 14’. Available in 6"(15.24cm) and 8"(20.32cm) diameters.

Double-Articulated Extension Booms

Double-Articulated Extension Booms

Two pivot points for flexible positioning. Available in 6"(15.24cm) and 8"(20.32cm) diameters.

VENTBOSS FUME EXTRACTION ARMS

Powerful portable, floor-mount and wall-mount extraction units from VentBoss with built-in fume arms. VentBoss is the leader in portable, floor-mount and wall-mount extraction units for manual weld smoke and other industrial applications. Perfect for individual weld stations, fabrication shops, weld schools and more.

See the full VentBoss line
VentBoss G120

Powerful Portables: G120/121

Top-of-the-line portable fume extractor with single or dual extraction arms. 1200 CFM.

VentBoss s311

Space-Savers: S311/312/313/314

Floor-mounted space saver unit with 1500 CFM of smoke-capturing power. Single or dual extraction arms.

VentBoss S318 S319

Wall/Ceiling Mount: 316/217/318/319

Mount this collector to the wall or ceiling. 1500 CFM of extraction power, single or dual extraction arms.

FIND YOUR EXTRACTION ARM APPLICATION

multiple people working together at a fabrication shopFabrication shops often involve multiple welding stations working with a variety of materials, creating different types of fumes that can be hazardous to workers. Portable weld fume extractors can be easily moved between different stations, offering flexibility to adapt to different welding tasks and materials.

teaching at a vocational schoolVocational schools and training centers often use fume arms in instructional settings to teach best practices for fume extraction and workplace safety. Welding schools can set up multiple booths with fume arms for training purposes.

laboratory fumesExtraction arms may be used in a laboratory setting for bench-scale applications creating dangerous fumes and emissions. Chemical and biological labs use fume arms for capturing potentially hazardous fumes, sometimes in conjunction with fume hoods.

FREQUENTLY ASKED QUESTIONS ABOUT EXTRACTION ARMS

Extraction Arm

What is an extraction arm?

A fume arm, also known as an extraction arm, is a specialized ventilation device designed to remove airborne contaminants, such as fumes, dust, and particulate matter, directly from the source of emission. This is particularly useful in industrial settings like welding, where toxic fumes can pose a health risk to workers. The fume arm typically consists of a close-capture hood or nozzle, which is placed near the source of the fumes, and a duct system that transports the captured fumes to a filtration or exhaust system for treatment or removal.

What are fume extraction arms used for?

Fume arms are primarily used for capturing and removing airborne contaminants directly at their source, thereby protecting workers from inhaling hazardous substances and improving overall air quality in the work environment. These devices are widely used for manual welding and other applications where toxic fumes, dust, or particulate matter are generated. They are generally best for environments with light to moderate manual production processes. In addition to welding and metalworking, they may be used for bench-scale laboratory applications, control of moisture and odors in food manufacturing, and control of toxic dust.

How do you use an extraction arm?

When using a fume extraction arm, it is very important to place the capture hood close to the fume source to ensure efficient capture of fumes and keep them out of the breathing zone. To use a fume arm:

  • First, securely attach it to a wall, post, or workstation using the provided mounting bracket.
  • Connect it to a ventilation or filtration system as per the manufacturer’s guidelines.
  • When you’re ready to work, extend and position the arm’s capture hood or nozzle close to the source of the fumes (max ~12”) but without obstructing your work.
  • Turn on the system to begin extracting fumes.
  • Periodically check and clean the filters and ducts as part of regular maintenance to ensure effective operation.

What are the benefits of extraction arms?

Fume extraction arms are a simple, versatile and cost-effective method of fume extraction for manual welding and other processes. Extraction arms offer several advantages for facilities needing effective fume control for light to moderate production and manual processes.

  • Targeted Extraction: Fume arms capture contaminants right at the source, making them highly effective in preventing the spread of fumes into the wider work environment and keeping fumes out of the breathing zone.
  • Flexibility and Versatility: The articulated design of fume arms allows for easy repositioning, making it possible to adapt to various tasks or workstations without the need for multiple extraction units.
  • Cost-Effectiveness: Because they are more targeted in their approach, fume arms often require less energy than whole-room ventilation systems, resulting in lower operating costs.
  • Ease of Installation: Fume arms are generally easier and quicker to install than larger, more complex ventilation systems. This can be particularly beneficial for smaller businesses or facilities that need to become operational quickly.
  • User-Friendly: Fume arms are typically easy to operate, with simple controls and straightforward maintenance requirements.
  • Space-Saving: Due to their targeted nature and smaller size, fume arms are ideal for work environments where space is at a premium.

What kind of dust collector is used with an extraction arm?

An extraction arm or fume arm must be connected to an exhaust system or dust collector that provides the airflow required to pull contaminants into the fume arm. Sometimes, a fume arm is connected to a simple exhaust ventilation system, which uses a fan to pull air through the extraction arm and exhaust it to the outside. More commonly, they are attached to a dust collection or air filtration system. A cartridge dust collector is commonly used for applications like welding that use fume arms to collect contaminants at the source. A cartridge collector filters contaminants out of the air and returns clean, filtered air to the facility or the outdoors.

  • A centralized dust collection system may be ducted to multiple extraction arms and other dust- and fume-creating processes. A centralized system with an industrial dust collector such as RoboVent Senturion™ is an advantage for shops with a large number of weld booths or a combination of welding stations and other applications requiring dust control, such as robotic cells.
  • For individual welding stations or small shops, an all-in-one unit that combines the fume extractor with the extractor arm is a simple and versatile solution. The collector may be a portable unit, mounted to the wall or ceiling, or floor mounted.

Learn more about principles of weld fume control: The Complete Guide to Welding Fume Extraction Systems.
