FlexPro™ | HVE-175-80-1

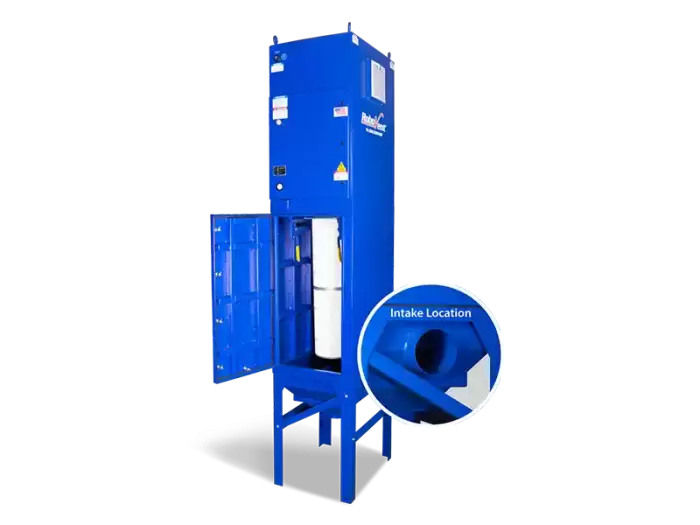

FlexPro Hi-Vac smoke air filtration system is a source capture unit for industrial weld fume extraction designed to eliminate the need for backdraft hoods and large ductwork and can be paired with the RoboVent Fume Gun and also with suction tubes mounted to an extractor or welding table with a max CFM of 140.
Product dimensions and other info.
Filter Media: PleatLock A15 Cartridge Filter (Nano MERV 15), Endurex B16 Cartridge Filter (PTFE MERV 16)
Max Air Flow (CFM): 140
Sound Level (dBA): 85
Input Power: 240 Volts, 16.8 FL Amps, 480 Volts, 8.4 FL Amps, 575 Volts, 7.0 FL Amps
Motor HP: 5.5HP
Dimensions: Unit: 97” high, 31” wide, 31" deep
Application: Manual Welding, Robotic Welding
Includes: Controls system, automatic filter cleaning system.
Weight: 565
Downloadable content related to this product. !!
