With 8″ by 14′ Fume Arm You asked for it, here it is. Our top of the line portable, with...

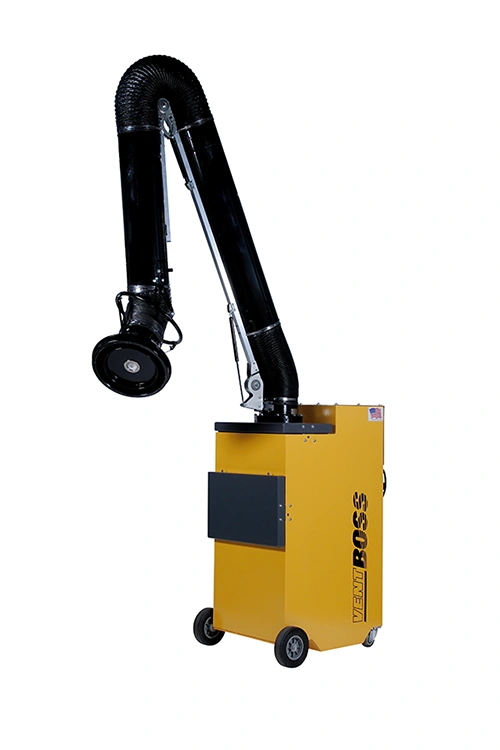

VentBoss Series | G123
With 8″ by 14′ Fume Arm You asked for it, here it is. Our top of the line portable, with the unique ability to quickly change from an extra-large 8” Fume arm or dual 6” Arms, to a Back Draft or a Down Draft table! All in one powerful 1200 CFM unit, with on board compressed air tank.
STANDARD FEATURES: Portable Unit with unique quick change-out from BackDraft to DownDraft or Fume Arms. Compressed air Pulse Cleaning System with on board tank, High Compression Filter Clamp, Slide Out Dust Tray, Built-In Spark Arrestance, High Performance Airfoil Blower, Acoustic Silencing, Heavy Duty – All Steel Construction, Suitable for Welding Stainless Steel.
Product dimensions and other info.
Filter Media: Nanofiber Merv 15
Max Air Flow (CFM): 1200
Sound Level (dBA): 70
Input Power: 110V, Single Phase, 60Hz
Motor HP: 1.5
Dimensions: 53” high, 23” wide, 31” deep
Application: Manual Welding
Includes: 8″ by 14′ Fume Arm & Minihelic Filter Gauge
Downloadable content related to this product. !!
Spec Sheet
VentBoss Line Card
