VentBoss Series | S220

Part Number: S220 Categories: ,

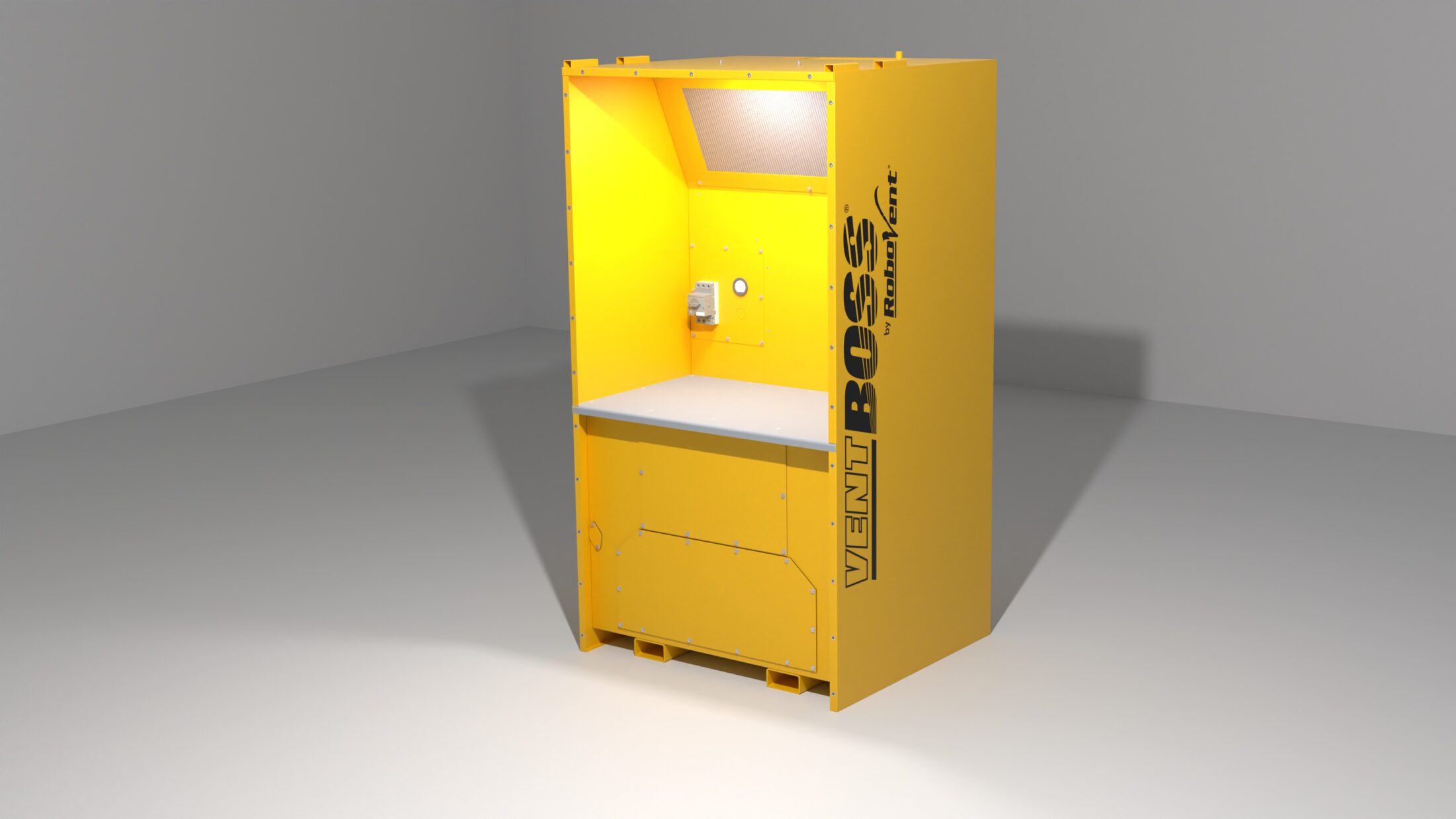

Ventboss Cross Flow Table 2000CFM This all-in-one weld booth is the answer to setting up a weld school or training...

Ventboss Cross Flow Table 2000CFM This all-in-one weld booth is the answer to setting up a weld school or training facility in a matter of hours, virtually eliminating installation time and cost. These plug-n-play units stand side to side or back to back to work in any facility layout.

STANDARD FEATURES: Weld Training Booth, Compressed Air Filter Cleaning, Built-In 2 Layer Spark Arrestance, Back Draft Fume Capture, Full Side Screens, Sliding Curtain Screen, Compressed air Pulse Cleaning System with on board tank, High Performance Blower, Acoustic Silencing, Heavy Duty – All Steel Construction, Suitable for Welding Stainless Steel.

Product dimensions and other info.


Filter Media: Nanofiber Merv 15
Max Air Flow (CFM): 2000
Sound Level (dBA): 72
Input Power: 480V, 3 Phase, 3.4 Amps
Motor HP: 2
Dimensions: 90” high, 48” wide, 44” deep
Application: Manual Welding
Includes: Sheet Steel work surface Fork Pocket Base Minihelic Filter Gauge
